Product introduction

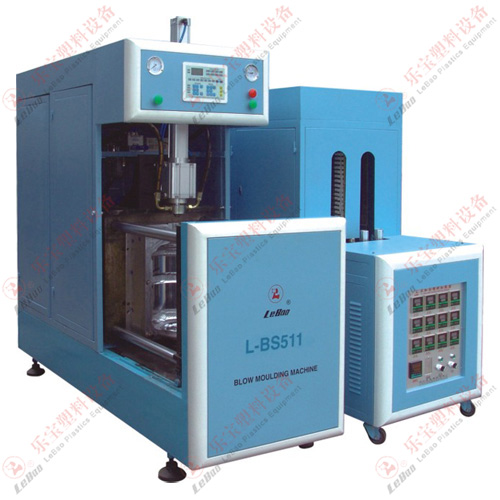

5 gallon semi-automatic PET blow moulding machine(model:L-BS511) is suitable for making 6L-20L PET bottles with stable performance and high yield rate.
Features
◊it is designed according to CE standard,easy and safe to operate.
◊it is equipped with patent inside heating system.
◊it is equipped with HP blowing cylinder
◊it is equipped with Strong Japan silencer
◊it is equipped with Germany FESTO LP solenoids.
Machine set consists of:
-Blower
-Infrared heater
-Low pressure air compressor(1.2/30)
-High pressure air compressor(1.0/10)
-Air Dryer
-Water chiller(3HP)
-Air filters(2pcs)
-5 gallon bottle mould
Technical parameter
|
Technical Parameter of L-BS511
|
|
Type
|
Item
|
Unit
|
Technical data
|
|
Container
|
product material
|
|
PET
|
|
container volume
|
L
|
6-20
|
|
theoratical output
|
pcs/hr
|
100
|
|
preform length
|
mm
|
15-160
|
|
preform diameter
|
mm
|
15-200
|
|
Moulding system
|
mould plate dimension
|
mm
|
420*500
|
|
max mould thickness
|
mm
|
400
|
|
clamping force
|
KN
|
330
|
|
mould opening stroke
|
mm
|
330
|
|
Air compressor
|
HP air flow
|
cbm
|
1.2
|
|
HP air pressure
|
Mpa
|
3.0
|
|
LP air flow
|
cbm
|
1.0
|
|
LP air pressure
|
Mpa
|
1.0
|
|
Machine dimenions/weight
|
power
|
KW
|
15+1
|
|
voltage
|
|
3P 220/380v
|
|
blower dimension
|
mm
|
2300*740*2000
|
|
blower weight
|
kg
|
1100
|
|
heater dimension
|
mm
|
2660*650*1660
|
|
heater weight
|
kg
|
400
|
Competitive previledges
1. Perfect function with economical investment.
2. Small size and compact construction with no space waste.
3. Easy to operate and maintain, operated by one person.
4. We are also a special manufacturer of 5 gallon PET preforms, one of the largest in China, we are quite keen and have richer experience in temperature/blowing settings.
5.The main structure is welded by Q235B 200*70 channel steel and heater is made of 40*40*1.5 square tube.the surface is treated with paint ejection. the whole structure is delicate and durable.
©
