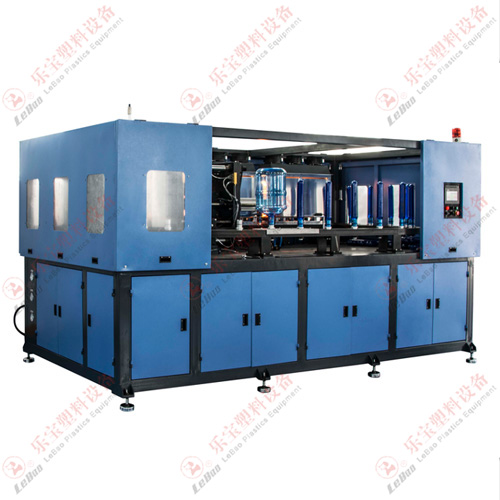

5 Gallon Automatic PET Blow Moulding Machine / L-BS511-A20

Product parameters

Product introduction
L-BS511-A20 automatic PET blow moulding machine is suitable for making 10L-20L PET bottles in automatic way.


1.1, The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable.

1.2, cylinders from Airtac, PLC from Delta, valves from SMC

1.3, Conveyor system adopts #45 steel, the surface is galvanized.

1.4, the machine is easy to operate by inserting the preform on preform holder, then the movement of heating,blowing and finished bottle transferring is done automatically.

1.5, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.

1.6, Output:200pcs/hr for 5 gallon bottles

Technical parameter

Technical Parameter of L-BS511-A20
Type Item Unit Technical data
Container product material   PET
container volume L 10-20
theoratical output pcs/hr 200
max preform length mm 490
max preform diameter mm 300
Moulding system clamping stroke mm 370
stretching stroke mm 650
bottom stroke mm 30-70
clamping force KN 480
Air compressor HP air flow cbm 1.2
HP air pressure Mpa 3.0
LP air flow cbm 1.0
LP air pressure Mpa 1.0
Machine dimenions/weight power KW 90
voltage   3P 220/380v
Machine dimension mm 4000*2250*2200
Machine weight kg 5000
