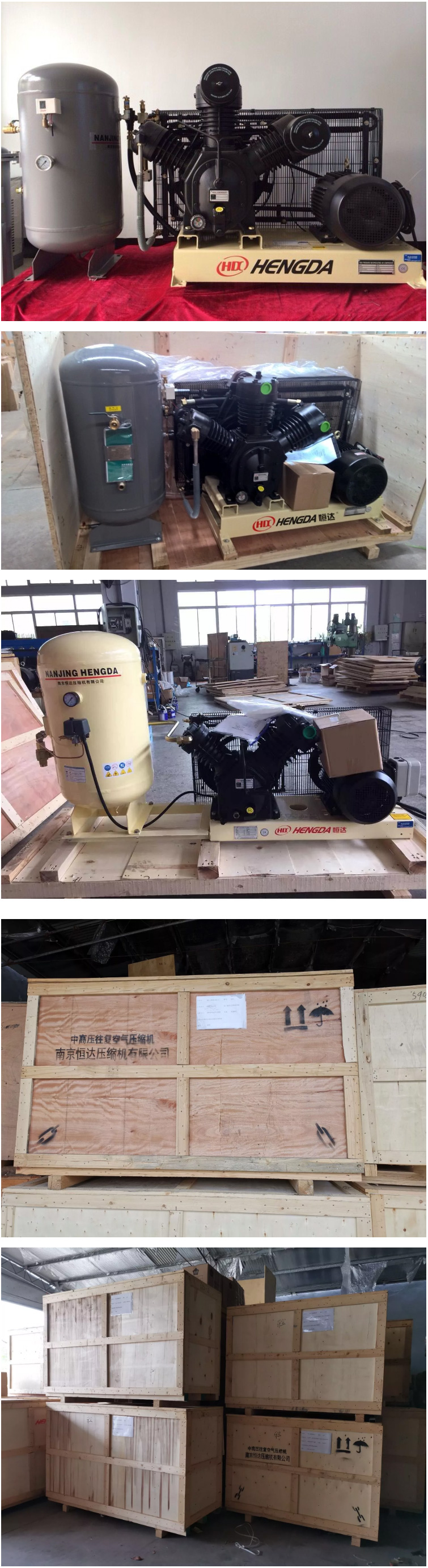

High Pressure Air Compressor / -
Product parameters
Product introduction
The high pressure compressors(from 0.7cbm to 4.0cbm)are widely used for making plastic bottles and other industrial use.
Technical Spefications
|
No.
|
Model
|
air flow M3/Min
|
Woring pressure Mpa
|
Motor power KW
|
air tank M3
|
weight Kg
|
Dimension L*W*H mm
|
|
1
|
0.7/30-SB
|
0.7
|
3.0
|
7.5
|
-
|
310
|
1450*750*1025
|
|
2
|
0.7/30
|
0.7
|
3.0
|
7.5
|
0.13
|
410
|
1910*760*1370
|
|
3
|
1.2/30-SB
|
1.2
|
3.0
|
11
|
-
|
430
|
1580*850*1110
|
|
4
|
1.2/30
|
1.2
|
3.0
|
11
|
0.13
|
530
|
2000*860*1275
|
|
5
|
WH-1.2/30-SB
|
1.2
|
3.0
|
15
|
-
|
430
|
1580*850*1110
|
|
6
|
WH-1.2/30
|
1.2
|
3.0
|
15
|
0.13
|
530
|
2000*860*1275
|
|
7
|
1.65/30
|
1.65
|
3.0
|
18.5
|
-
|
520
|
1750*1010*1420
|
|
8
|
2.0/30
|
2.0
|
3.0
|
22
|
-
|
550
|
1750*1010*1420
|
|
9
|
2.4/30
|
2.4
|
3.0
|
22
|
-
|
1050
|
2010*1730*1360
|
|
10
|
WH-2.4/30
|
2.4
|
3.0
|
15*2
|
-
|
1050
|
2010*1730*1360
|
|
11
|
3.3/30
|
3.3
|
3.0
|
18.5*2
|
-
|
1350
|
3550*1010*1420
|
|
12
|
3.6/30
|
3.6
|
3.0
|
15*3
|
-
|
1580
|
3760*1730*1360
|
|
13
|
4.0/30
|
4.0
|
3.0
|
22*2
|
-
|
1400
|
3550*1010*1420
|
|
14
|
1.0/40
|
1.0
|
4.0
|
11
|
-
|
470
|
1530*910*1110
|
|
15
|
2.0/40
|
2.0
|
4.0
|
22
|
-
|
710
|
2300*950*1400
|
|
16
|
3.0/40
|
3.0
|
3.0
|
30
|
-
|
920
|
2210*1180*1450
|
FAQ
1)how many size do you have
A: we have compressors from 0.7 to 4.0cbm HP air compressors
2)what is the voltage for the compressor
A: it is standard 3P 380V. and it can be designed on 3P 220V or other voltage as well.
3)what is guarantee time?
A: one year
4)what comes with the compressor
A: necessarge spares and manual, certificate etc.
©
